Description

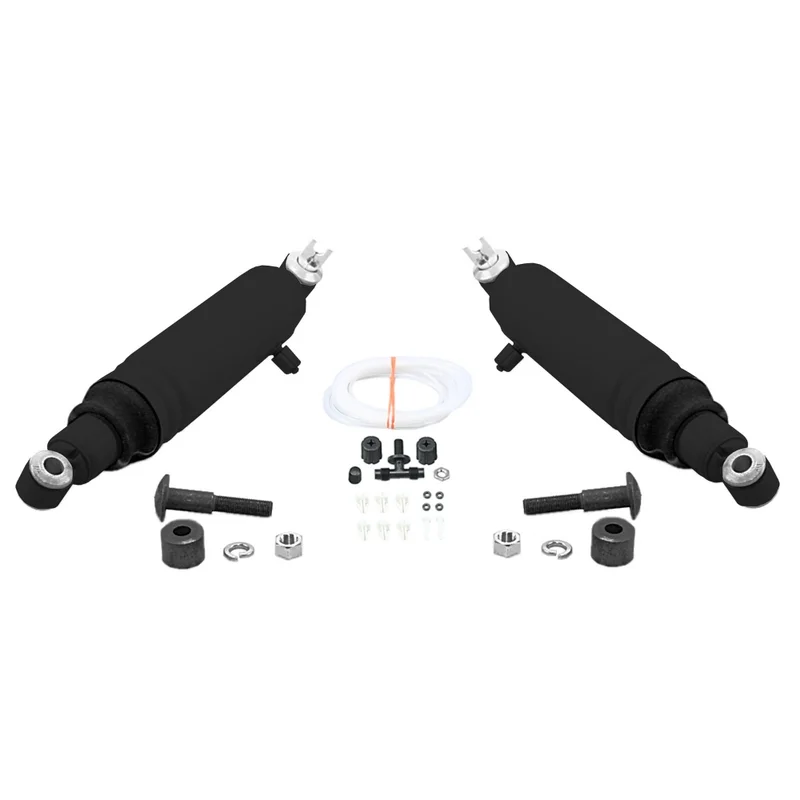

Max-Air Air Adjustable Rear Air Shock Absorber Pack of 2Ideal for hauling, Monroe(R) Max-Air(R) shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Ride Height: No
Boot Included: Yes
Compressed Length: 12.875″
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length:520.7 MM
Grade Type: Premium
Hydraulic Lockout: No
Includes Bump Stop: Yes
Internal Rebound Bumper: Yes
Lower Mount Code: L1/CP4
Lower Mount Type: Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 1/2″ Stud Length (Center of Loop to Frame)
Parts Pack(s): (2) P00072
Shock Absorber Body End Measuring Point: Center of Loop
Shock Absorber Rod End Measuring Point: Center of Cross Pin
Travel Length: 7.625 Inch
Upper Mount Code: XP12
Upper Mount Type: Cross Pin Mount – Open Ended, 3/8″ Hole ID (Both Ends) X 3.3/16″ Pin Length (Hole Center to Center)
