Description

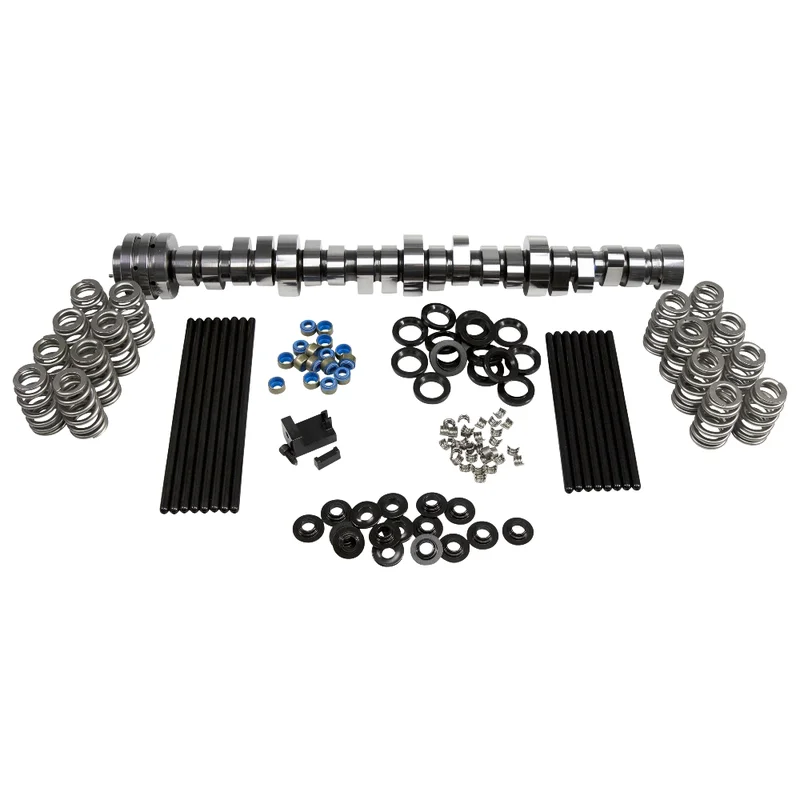

HRT Turbo Stage 1 Hydraulic Roller CK-Kit for ’09+ Dodge 5.7/6.4L HEMIThe HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque increases available for turbo and supercharged engines. The â??Low Shock Technologyâ? features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springsenhancing durability and reducing load loss. These new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard featurewhich increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing areaallowing for much higher loads.Organized into stagesthese new options range from mild street up to heavily modified race-oriented builds. All HRT Turbo Supercharger Camshafts require a COMP Cams DOD Delete Kit and upgraded valve springs. Depending on application5.7L-6.4L w/ VVT 2009+ engines also require either a COMP Cams phaser limiter or lock kit.Stage 2 available under CK201-332-11

Advertised Exhaust Duration: 287 DD

Advertised Intake Duration: 279 DD

Assembly Lubricant Included: No

Basic Operating RPM Range: 1 800-6 600 R3

Cam Type: Hydraulic Roller

Camshaft Gear Attachment:OEM

Camshaft Material: Billet Steel

Camshaft Series: HRT

Engine Family:Hemi 5.7-6.4L2009+

Estimated Horsepower Gain with Kit:158

Exhaust Duration at .050 inch Lift: 229 DD

Exhaust Valve Lift: 0.594″

Gaskets Included: No

Grind Number:HRT Turbo Stage 1

Intake Duration at .050″ Lift: 221 DD

Intake Valve Lift: 0.594″

Lifter Style: Hydraulic Roller

Lifters Included: No

Lobe Separation: 115

Locks Included: Yes

Pushrods Included: Yes

Recommended Phaser Limiter/Lock Out:Limiter Required (# 5760 Not Included)

Recommended Upgraded Stock Rocker Arms: N/A

Recommended Valve Springs: 26918-16

Retainers Included: Yes

Stage: 1

Timing Set Included: No

Usage:Street Strip

Valve Seals Included: Yes

Valve Spring Seats Included: Yes

Valve Springs Included: Yes
