Description

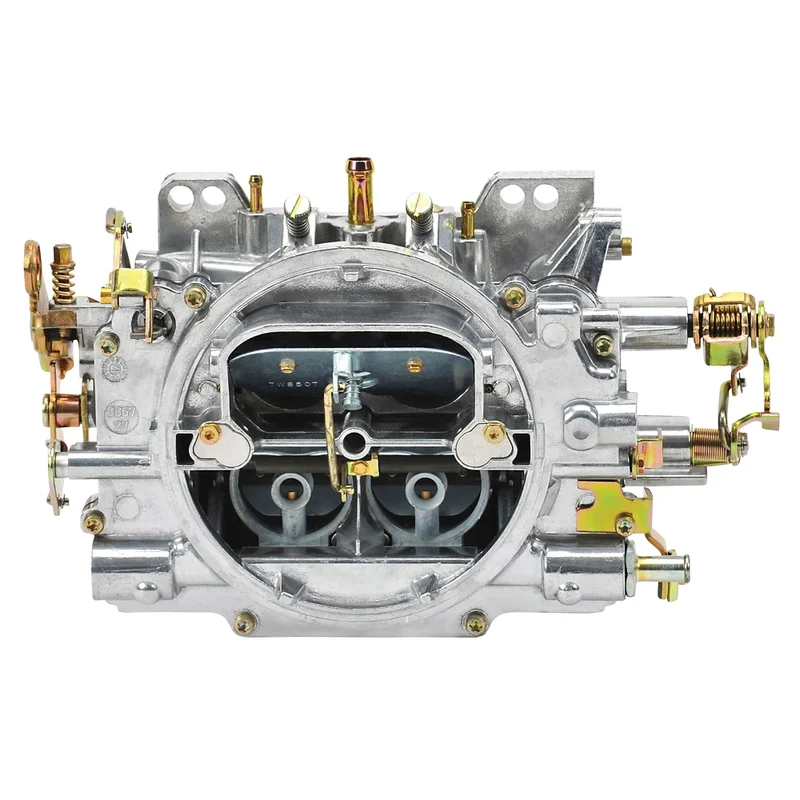

Edelbrock Performer Series EPS 800 cfmSquare-BoreManual Choke Carburetor (non-EGR)The Edelbrock 1412 Performer Series 800 CFM manual choke carburetor is a precisely tunedquality-built carburetor that can handle the rigors of daily driving while delivering consistentreliable street performance from day to day. Several characteristics make the 1412 Performer Series 800 CFM manual choke carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfireswhich means that there are no power valves to blow outand the rods can be changed in seconds without carburetor removal or fuel draining. Secondlythe carburetor has the unique ability to ”hold a tune”so once it is tunedthe carburetor stay’s tuned. What this means to you is that compared to other carburetorsthe performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that’s reliableuser-friendly and is easily tunable for miles and miles of trouble-free operation. Dyno tests proved that the EPS 800 carb outperformed a Holley #3310 carb out-of-the-box by 26 ft-lbs. of torque and 22 hp on a small-block Chevy engine equipped with an Edelbrock Performer RPM power package

Barrels: 4

Body Height: 3.25″

Booster Type: annular

Bore Diameter: Primary Bore 1.75″

Choke Type: Manual

Condition: New

EGR Port: No

Finish: Satin

Flange Shape: Square

Gasket Or Seal Included: Yes

Main Venturi Diameter: 1.525″

Material: Aluminum

Maximum Flow Rating: 800 2L

Metering Rod Size: .071 x .047″

Primary Jet Diameter: 0.113 Inch

Secondary Bore 1.75″

Secondary Jet Diameter: 0.101 Inch

Series: Performer

Spring Force: 5″ Hg (Orange)
