Description

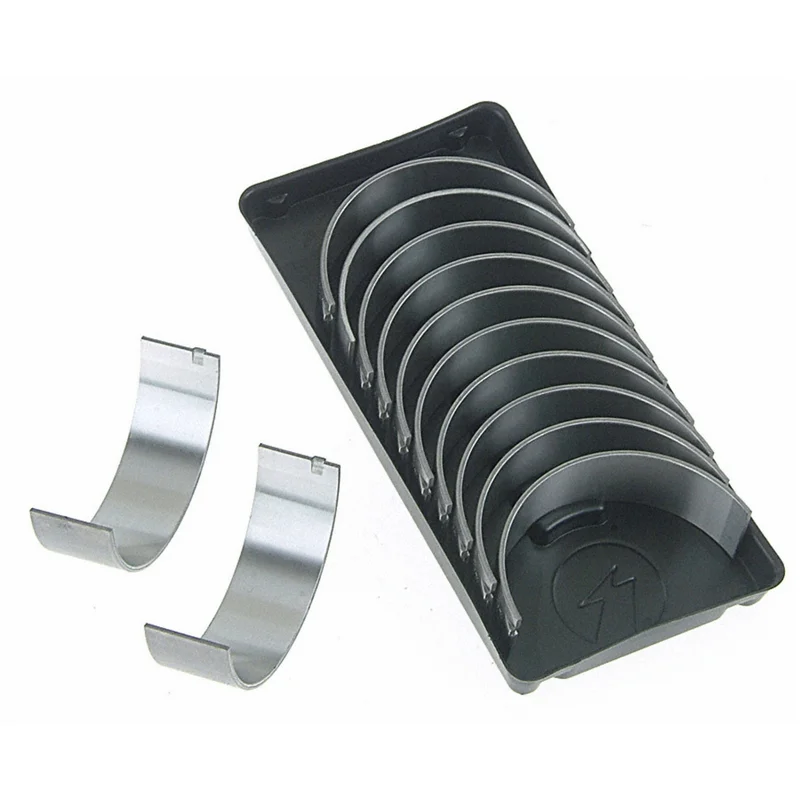

Built for the demands of today’s engines, Sealed Power(R) parts deliver the dependability that engine professionals trust. Designed to help restore engine performance, Sealed Power application-specific components help ensure the job is done right the first time… because downtime is not an option.
Design Feature 1: Undersize” .025
Design Feature 2: .002″ O/S Rod Bore
Grade Type: Premium
Housing Bore Max (Inch): 2.4271″
Housing Bore Max (MM): 61.6480 mm
Housing Bore Min (Inch): 2.4264″
Housing Bore Min (MM): 61.6310 mm
Oil Clearance Max (Inch): 0.0026 Inch
Oil Clearance Max (MM): 0.0660 MM
Oil Clearance Min (Inch): 0.0005 Inch
Oil Clearance Min (MM): 0.0130 MM
Overall Length Max (Inch): 0.7840 Inch
Overall Length Max (MM): 19.9100 MM
Standard Shaft Max (Inch): 2.3111 Inch
Standard Shaft Max (MM): 58.7020 MM
Standard Shaft Min (Inch): 2.3103 Inch
Standard Shaft Min (MM): 58.6820 MM
Wall Thickness Max (Inch): 0.0575 Inch
Wall thickness Max (MM): 1.4610 MM
