Davies Craig EWP160 – Remote Electric Water Pump (12V)

The EWP®160 is a high-performance brushless magnetic-drive Electric Water Pump engineered for high-performance street, motorsport, 4WD, marine, heavy-duty cooling and water-to-air intercooler applications. Delivering exceptional flow capability with advanced PWM control, it provides precise thermal management across a wide range of operating conditions.

The EWP®160 is engineered for serious cooling performance where flow under pressure matters. While the EWP®160 delivers an impressive 160 L/min open flow, the true measure of performance is its ability to maintain strong circulation under load:

56.5 L/min @ 1.5 Bar (15m Head)

This is where real-world cooling performance counts.

Under system resistance — through radiators, intercooler cores, heat exchangers, cylinder heads and plumbing — the EWP®160 continues to deliver a powerful and stable 56.5 litres per minute at 1.5 bar. That means consistent coolant movement when your engine or intercooler system is working hardest.

With advanced magnetic drive brushless motor technology, IP68 sealing and full PWM control compatibility, this pump provides precise, reliable cooling performance in the harshest environments.

Why Brushless Matters:

• No carbon brushes to wear out

• Reduced internal friction

• Lower heat generation

• Improved electrical efficiency

• Greater reliability in continuous operation

• Designed for sustained high-load cooling systems

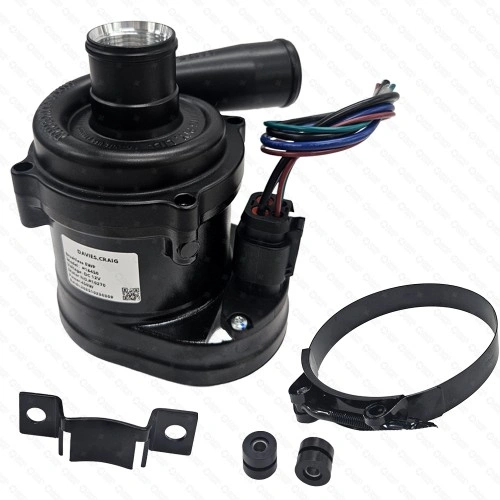

KIT CONTENTS:

• Brushless EWP®160
• Brushless EWP® Wiring Harness (300MM)
• Brushless EWP® Mounting Bracket
• T-Bolt Clamp
• Vibration Damper M6

TECHNICAL SPECIFICATIONS:

• Operating voltage: 13,5V (Max 19V)
• Rated current: 26 A (Max 29.1 A)
• Open Flow rate: 160 l/min
• Rated Flowrate @ 1.5 bar (15m) Head : 56.5 l/min
• Fluid temp.: -40°C – 120°C
• IP Rating: IP68
• Pump weight: 2,013grams
• Pump material: Aluminium (ADC12), Stainless Steel, Nitrile, Steel, silicon Carbide, PPS
• Burst pressure: 500 kPa/72.52 psi
• Self Priming: NOT self-priming Centrifugal pump
• FittingType: Push on barb with 16AN ORB fitting
• Inlet Outlet Size: 38 MM
