Description

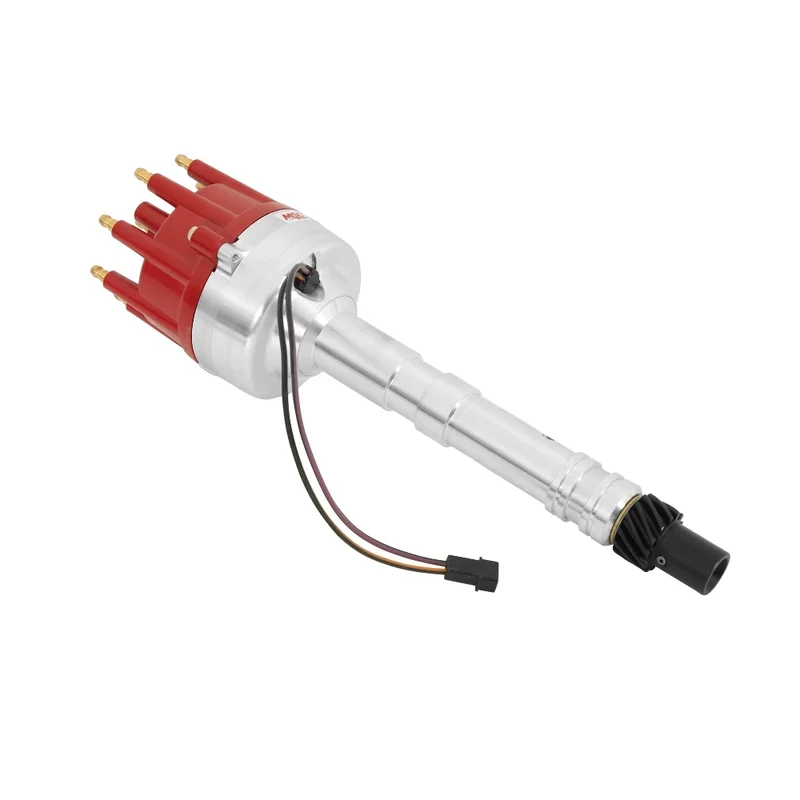

The smallest diameter distributor made by MSD for tight clearances.This magnetic pickup distributor measures 1/2″ smaller in diameter and over 1″ shorter than standard distributors.Proven performance features include a high output magnetic pick-up and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application.This Chevy distributor is the smallest ever built by MSD! It is specifically designed for racers and street rodders with space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. It measures 1/2″ narrower and over 1″ shorter than a standard distributor.Supplied with small diameter HEI style distributor cap and rotorEasy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions)Nylon pads ensure smooth operation of the advance weightsWill not accept a vacuum advance canisterMechanical advance assembly can be locked out for crank trigger systemsCNC machined billet aluminum housing is 1/2â? smaller in diameter and over 1â? shorter than conventional Chevy V-8 distributors with the â??pointsâ? type capAdvance weight pins are staked and tig welded to the plateSpecial oil tract improves lubrication to the distributor and cam gearAdjustable slip collar mounting flange for engines with modified deck heightsPolished steel shaft is QPQ coated and guided by a sealed ball bearing and extra-long sintered bushingO-ring seals can be added to modified blocks to improve oil pressure controlMust be used with an MSD 6, 7, 8, or 10 Series IgnitionMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
