Description

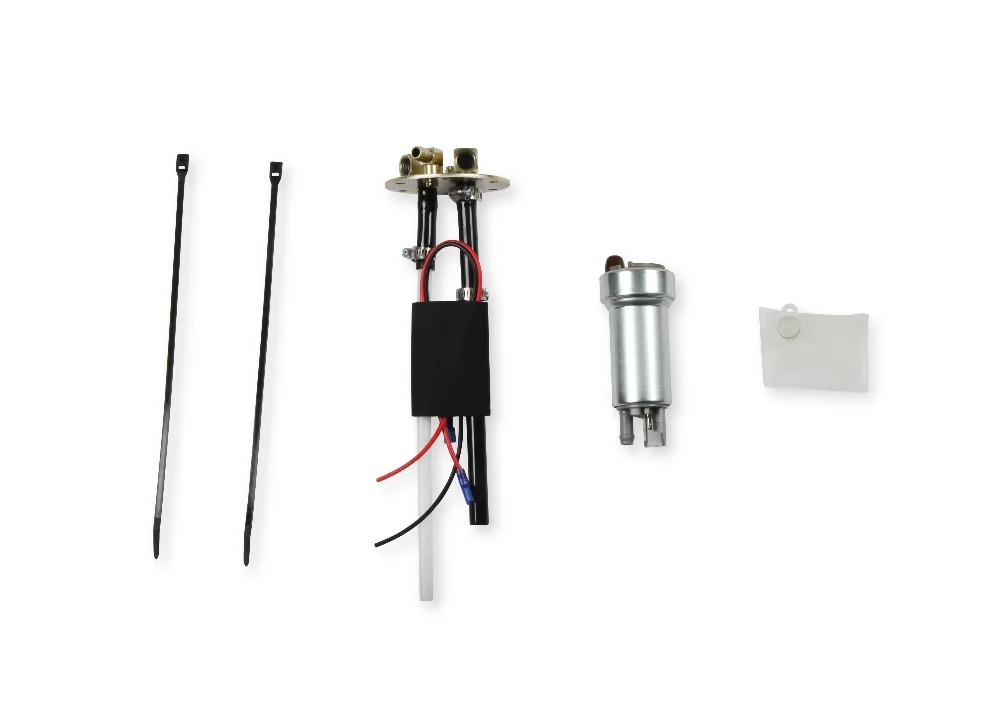

Fuel Pump Assembly – 400 LPH400 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4″ NPT Supply and Return line. For a better seal, use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.New Mounting Screws and gasket available separately. *19-170 kit is a thicker gasket and longer screws for use on the GM A Body (Chevelle, GTO, etc….) fuel tanks since they are shallower at the point where the fuel pump is mounted. *19-169 kit for all other EFI fuel tanksConnect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
