Description

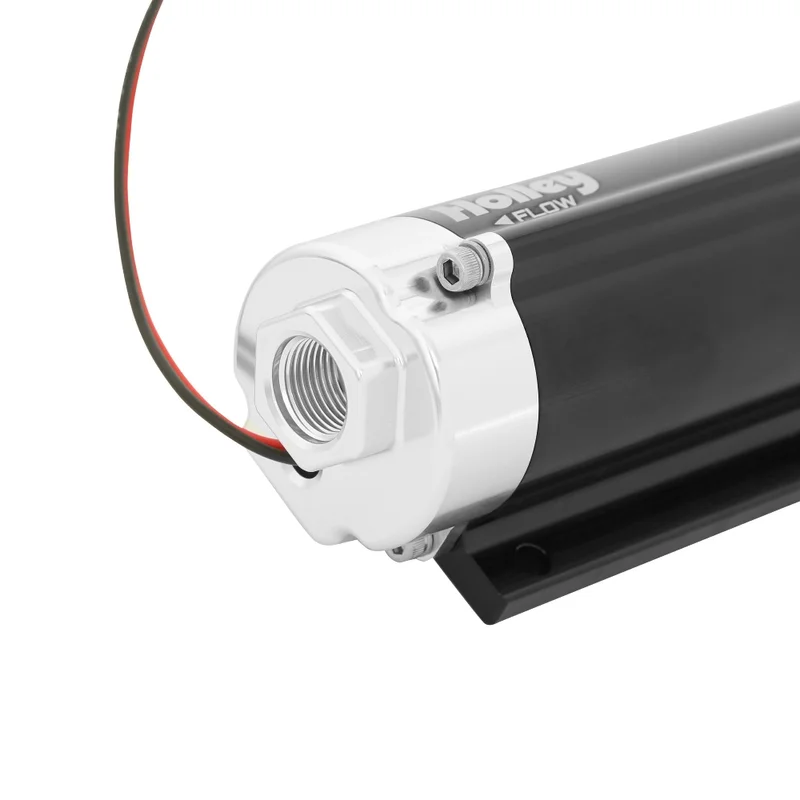

Carb or EFI ApplicationsSupports up to 900 EFI or 1050 Carb HPCompatible with Pump Gas*, Race gas, Diesel or E85Billet aluminum construction for durability good looks-8 an o-ring inlet/outlet for high flow and superior sealingExcellent for use with carbureted or EFI applicationsFully submersible in-tank for custom applications, space savings and less plumbingCompatible with 12v to 18.5v systems for street or race useCompact (7.5â? long x 3â? wide x 2.75â? tall) for easy installation on frame rails or other tight areasProven durability beyond 3,000 hours in gasoline or diesel fuelsWeighs only 3.1 lbs.Current draw at 43 psi and 13.5 vdc is 8.6 ampsNot designed for use on aircraft of any type.Holley’s HPâ?¢ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck, or any engine needing fuel! The HPâ?¢ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost-effective, attractive package. HPâ?¢ fuel pumps are Race gas, E-85, and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.

Application: Universal

Average Current Draw:8.6

Color: Silver

Finish: Anodized

Forced Induction HP@43PSI: 700

Forced Induction HP@60PSI: 600

Forced Induction HP@8PSI: 800

Free Flow GPH: 105

Fuel Delivery Type: Carburetor

Fuel Delivery Type: Fuel Injection

Fuel Sending Unit Included: No

Fuel System: Carbureted

Fuel System: EFI

Fuel Type: Diesel

Fuel Type: E85

Fuel Type: Gasoline

Gasket Or Seal Included: No

GPH@43PSI: 76

GPH@60PSI: 70

GPH@8PSI: 100

Grade Type: Performance

Inlet Fitting Thread Size: 3/4-16″

Inlet Size: 8 AN O-Ring – 3/4-16 SAE

Inlet Type: 8 AN ORB

Internal Or External: Internal External

LPH@43PSI: 287

LPH@60PSI: 265

LPH@8PSI: 363

Material: Aluminum

Maximum Flow Rating:105

Maximum Pressure: 80 PS

Mounting Hardware Included: No

Naturally Aspirated HP@43PSI: 900

Naturally Aspirated HP@60PSI: 800

Naturally Aspirated HP@8PSI: 1050

Negative Ground: Yes

Outlet Quantity: 3/4-16 Inch

Outlet Size: 8 AN O-Ring – 3/4-16 SAE

Outlet Type: 8 AN ORB

Pump Body Color: Black Anodized

Regulator Included: No

Strainer Included: No

Terminal Quantity: 2

Universal Or Specific Fit: Universal

Voltage: 12-18.5 2H

Wire Quantity: 2

Wiring Harness Included: No
