Description

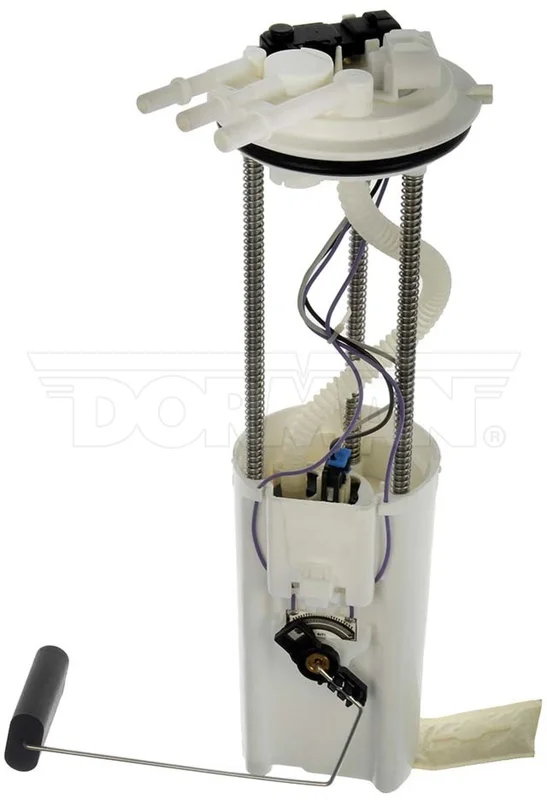

This fuel pump module assembly matches the fit and function of the original parts in specific vehicles. Built from durable materials, this pump is designed to be reliable over a long service life.Direct replacement – this fuel pump assembly matches the fit and function of the original equipment fuel pump on specified vehiclesDurable construction – this fuel pump is made of quality materials for a long service lifeSaves money – offers original equipment quality at a competitive priceQuality assured – this fuel pump assembly has undergone rigorous testing to ensure reliable performance

Average Current Draw: 8 68

Connector Color: White

Connector Gender: Female

Connector Shape: Oval

Fuel Sending Unit Included: Yes

Fuel Tank Pressure Sensor Included: Yes

Fuel Type: Gas

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Rubber

Grade Type: Standard Replacement

Height: 357.00 mm

Housing Length: 175.00 mm

Housing Material: Acetal

Housing Width: 95.00 mm

In Tank or External: In Tank

Inlet Outside Diameter: 7.90 mm

Inlet Quantity: 1 Inch

Inlet Type: Flanged

Internal Or External Strainer: Internal

Length: 110.00 mm

Lock Ring Included: No

Maximum Flow Rating: 97 GPH

Maximum Pressure: 80 PS

Minimum Free Flow Rate: 160 GPH

Minimum Pressure: 43 PS

Mounting Hardware Included: No

Negative Ground: Yes

Outlet Diameter: 5.8 mm MM

Outlet Outside Diameter: 9.5 MM

Outlet Quantity: 1 Inch

Outlet Type: Flanged

Package Contents: 1 Fuel Pump Module Assembly

Pump Design: Electric In-tank

Pump Type: Electric

Regulator Included: No

Resistance Ohms Empty: 39 82

Resistance Ohms Full: 250 82

Strainer Included: Yes

Terminal Gender: Male

Terminal Quantity: 3

Terminal Type: Blade Pin

Top Mount Diameter: 113 MM

Universal Or Specific Fit: Specific

Voltage: 15 2H

Width: 4.768 Inch

Wire Gauge Measurement: 22 GU

Wire Harness Included: Yes

Wire Quantity: 4

Wiring Harness Length: 400 MM
