Description

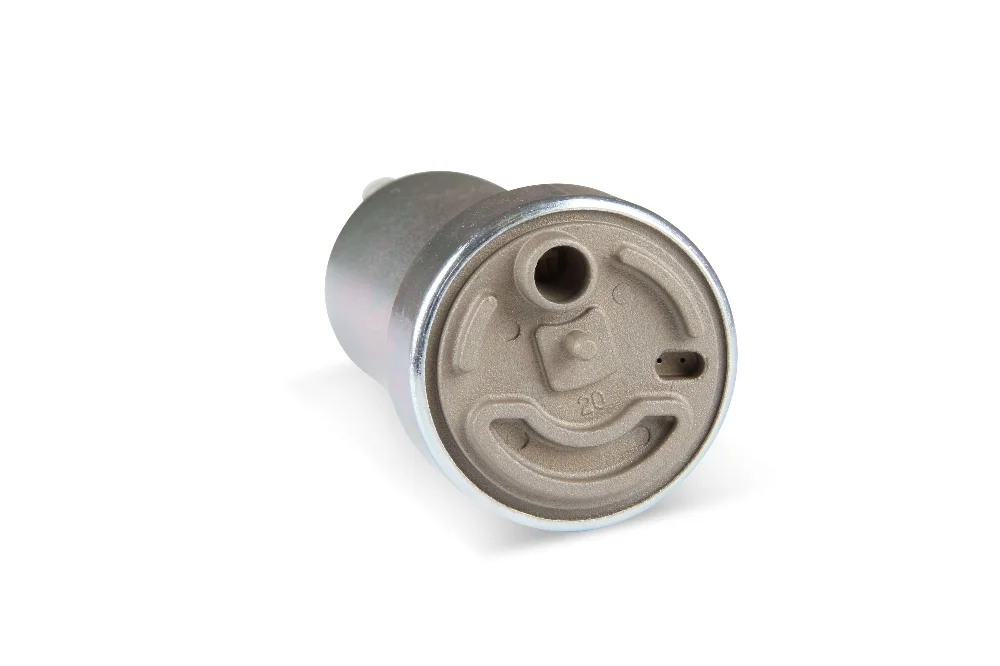

Sniper EFI Fuel Tank System 400 LPHHolley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 400 lph fuel pump, internal baffling, and fuel level sender. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!***Steel filler neck is not included. You must use your existing stock filler neck or purchase one through restoration suppliers.Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)Size is: 43-5/8″ x 16-1/4″ x 10-1/8″When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.

Application: 1956-62 Chevrolet Corvette

Attached Sump: Yes

Baffled Sump: Yes

Color: Silver

Drain Plug: No

Filler Neck Attached: No

Finish: Powdercoated

Free Flow LPH: 400

Fuel Sending Unit Ohms: 0-30 Ohms

Fuel System Compatibility: Electronic Fuel Injection

Fuel System Type: Gasoline

Fuel Tank Coating: Powder Coated

Gallon Capacity: 16

Grade Type: Performance

Lock Ring Included: Yes

Material: Steel

Maximum Flow Rating: 400 LPH

Mounting Straps Included: Yes

New Straps Included: Yes

O-Ring Included: Yes

Resistance Ohms Empty: 0 82

Resistance Ohms Full: 30 82

Sending Unit Included: Yes

Tank Capacity: 16 GA

Tank Color: Gray

Tank Material: Steel
