Description

UL approved for marine use, includes built-in rev limiterThe MSD 6M-2L Ignition Control is designed for performance marine applications where a high energy and reliable ignition is a necessity. The capacitive discharge (CD) design of the MSD produces full power sparks throughout your boat’s entire rpm range. Below 3,000 rpm, a series of multiple sparks burn in the cylinder for 20° of crankshaft rotation ensuring complete combustion. Together, these sparks produce easier starting, great throttle response, more power and reduced plug fouling during idling. Weathertight connectors securely lock together to provide reliable connections that are unaffected by water, oil, gasoline and most other chemicals associated with boats. The 6M-2L’s electrical circuitry from marine conditions, the entire unit is potted with a polyurethane compound. This material prevents the electrical components from coming into contact with water or other chemicals. The 6M-2L also features a built-in Soft Touch Rev Control that will save your engine from overrev damage. The rpm limit is set with sealed rpm modules (see below). The 6M-2L can be triggered by either a magnetic pickup (distributor or crank trigger), amplifier or by a breaker point distributor. The cable harness has the proper connector so you can plug the 6M-2L into one of the Pro-Billet MSD Marine distributors.MSD’s popular 6M-2 with a built-in rev-limiterMultiple sparks improve starting, throttle response and idle qualityWeathertight connectors protect wiring from water and chemicals1 Amp Per 1,000 RPM12-18 Volts, Negative Ground15,000 RPM with 14.4 VoltsCircuitry is potted for a weather-proof housing

Color: Blue

Connector Gender: Male Female

Connector Quantity: 3

Current Draw: 1000 RPM

Grade Type: Performance

Height: 2.25″

Ignition Type: Performance

Length: 8″

Maximum RPM: 15,000 RPM

Mount Type: Surface Mount

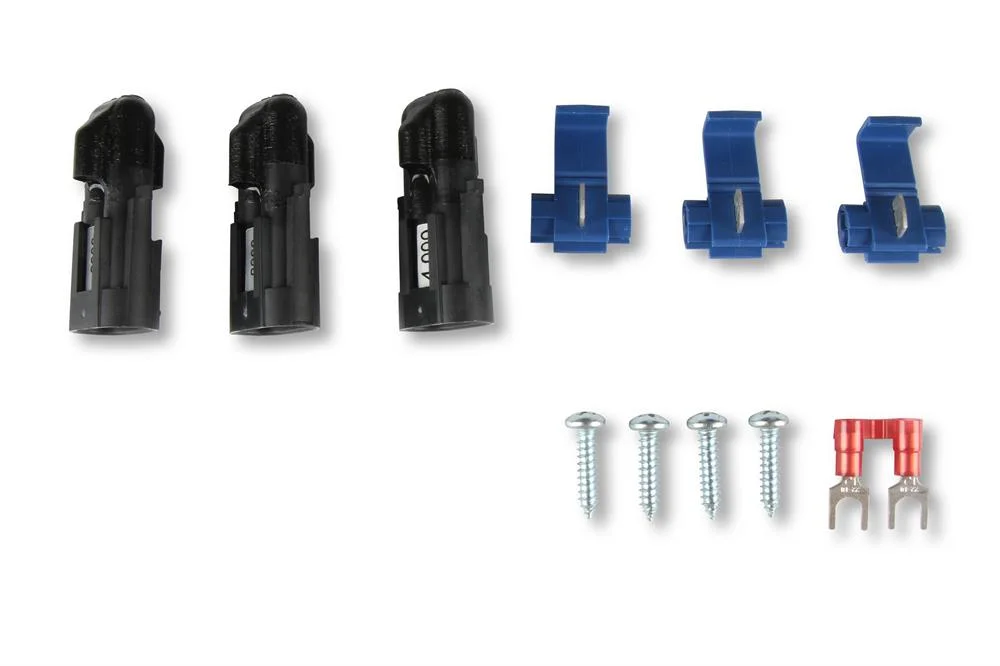

Mounting Hardware Included: Yes

Primary Voltage: 460-480

Secondary Voltage: 45,000

Spark Energy (mJ per spark): 105-115

Spark Series Duration: 20 Degree Crankshaft Rotation

Terminal Gender: Male Female

Terminal Quantity: 11

Voltage Required: 12-18

Width: 3.5 Inch
