Description

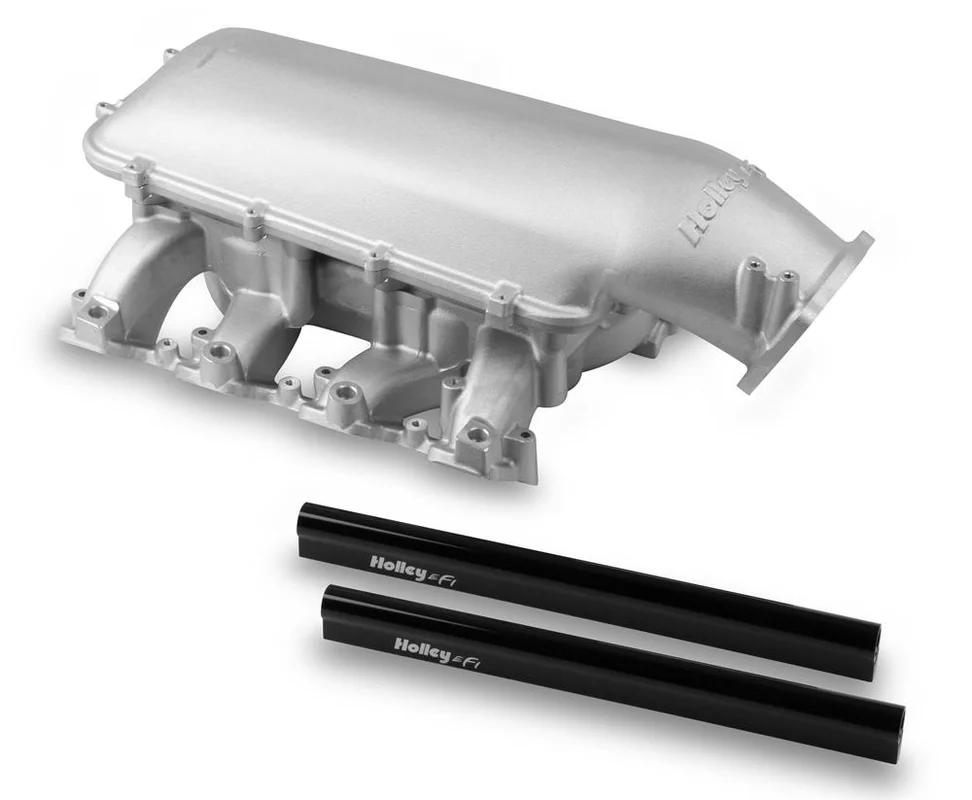

All GM LS Gen III or IV engines equipped with LS3/L92 style rectangular ports. Mid-Rise EFI Intake Manifold Kit. 1500-6500RPM Power Band.Mid-Rise manifold for excellent street/strip performanceFits GM LS3/L92 engines92MM EFI PlenumOverall Height of 10.44 inches1500-6500RPM Power BandThe Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44″, the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance. It’s perfect for turbocharged, or naturally aspirated applications.*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.

Basic Operating RPM Range: 2500-7000 RPM

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: N/A

CNC Ported: No

Color: Silver

Construction: Cast

Cylinder Head Port Shape: Rectangle

Deck Height: 9.24 Inch

EGR Port: No

Engine: GM LS3/L92

Flange Style: EFI

Front Maximum Height: 10.44″

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Fuel System Type: EFI

Gasket Or Seal Included: Yes

Grade Type: Performance

Intake Port Gasket(s) Included: Yes

Manifold Type: Mid Rise

Material: Aluminum

Nitrous Bung(s) Included: No

Plenum Finish: Natural

Rear Maximum Height: 9.99 Inch

Recommended Use: Forced Induction

Removable Runners: No

Removable Top/Lid: Yes

Single Or Dual Plane Type: Single Plane

Throttle Body Bore Diameter: 95 MM

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Vacuum Ports: Yes
