Description

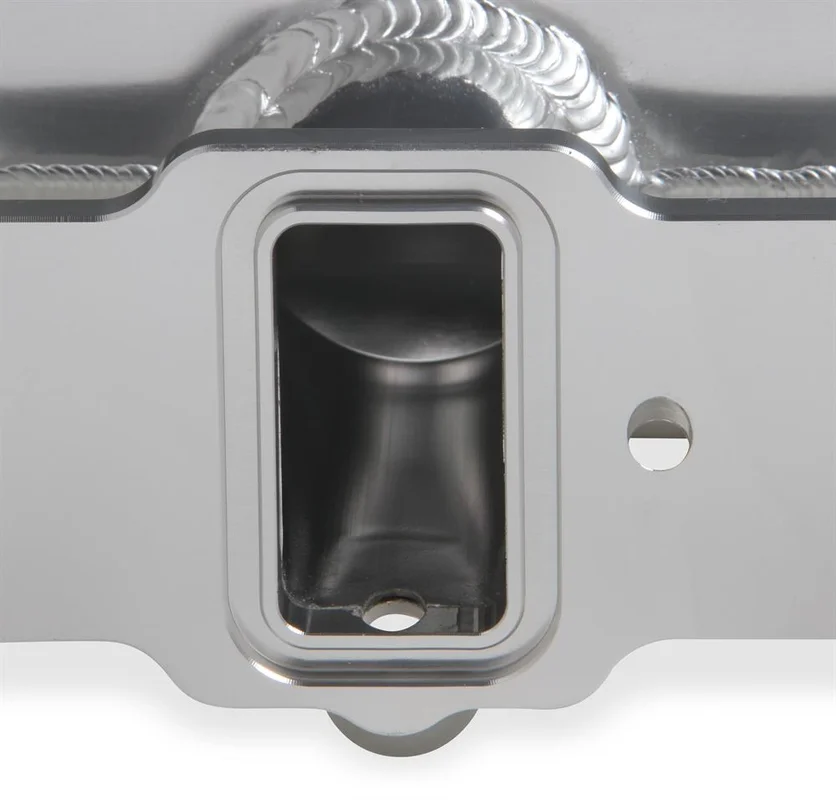

Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS7Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Basic Operating RPM Range: 2500-7000 RPM
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
CNC Ported: No
Color: Silver
Construction: Fabricated
Cylinder Head Port Shape: Raised Rectangle
Deck Height: 9.24 Inch
EGR Port: No
Engine: GM LS7
Flange Style: N/A
Front Maximum Height: 7.362″
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: No
Grade Type: Performance
Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Polished
Rear Maximum Height: 6.85 Inch
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 4.921″ (125mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 102 MM
Throttle Body Gasket Included: Yes
Throttle Body Included: No
Throttle Bore: 102mm
Vacuum Ports: (3) 1/8″-28BSPT & (1) 1/4″-19BSPT
