Description

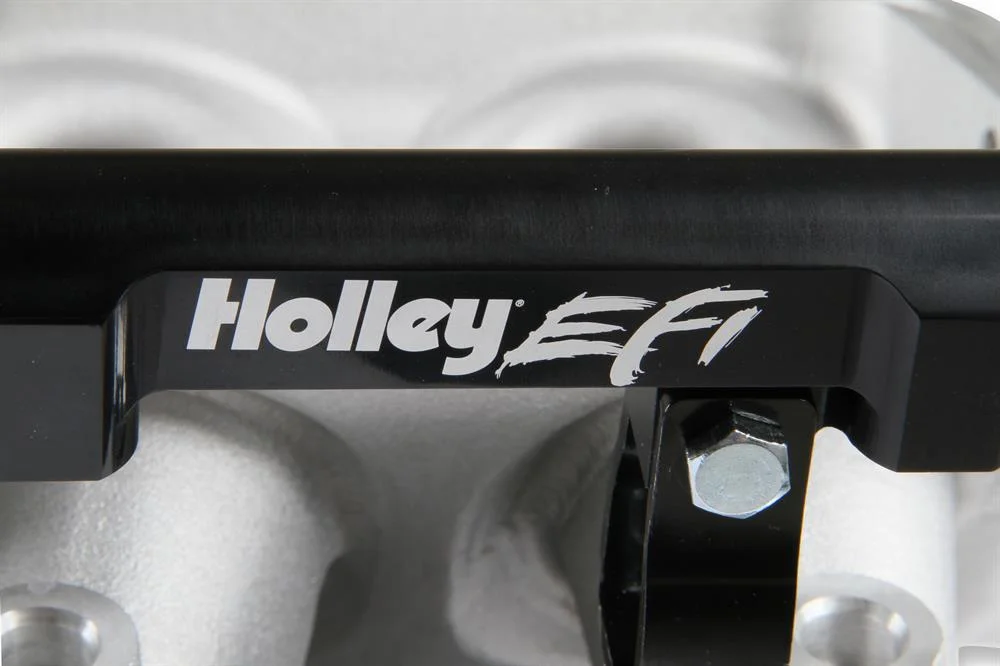

Ultra Lo-Ram Manifold Kit – LS1/2/6Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.Front entry plenum flange allows design fabrication of special throttle body adapters or inlet ducts for custom installationsNo burst panel, solid castIntake design facilitates custom inlet duct and throttle body placementHigh volume fuel rails and mounting hardware included with ¾â?-16 o-ring ports (8 AN)With forced-induction and the short runner length the engine rpm at which peak power occurs is more likely to be coupled to the supercharger or turbocharger being usedClears 4th Gen Camaro and C5 Corvette cowls and hoods without modificationLow height to fit under a stock or mildly modified hood in the front configurationModular design allowing the use of front-feed plenum entryDesigned for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder headsThe 300-621 Lo-Ram plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines.The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.The Holley LS1/2/6 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood.

Basic Operating RPM Range: 3500-8000 RPM

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: N/A

CNC Ported: No

Color: Silver

Construction: Cast

Cylinder Head Port Shape: Cathedral

Deck Height: 9.24 Inch

EGR Port: No

Engine: GM LS1/LS2/LS6

Flange Style: EFI

Front Maximum Height: 6.86″ height with throttle body adapter Inch

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Fuel System Type: EFI

Gasket Or Seal Included: No

Grade Type: Performance

Injector Quantity: Single

Inlet Location: Front

Intake Port Gasket(s) Included: No

Manifold Type: Ultra Lo-Ram

Material: Aluminum

Nitrous Bung(s) Included: No

Plenum Finish: Natural

Recommended Use: Forced Induction

Removable Runners: No

Removable Top/Lid: Yes

Single Or Dual Plane Type: Single Plane

Throttle Body Bore Diameter: 105 MM

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Vacuum Ports: Yes
