Description

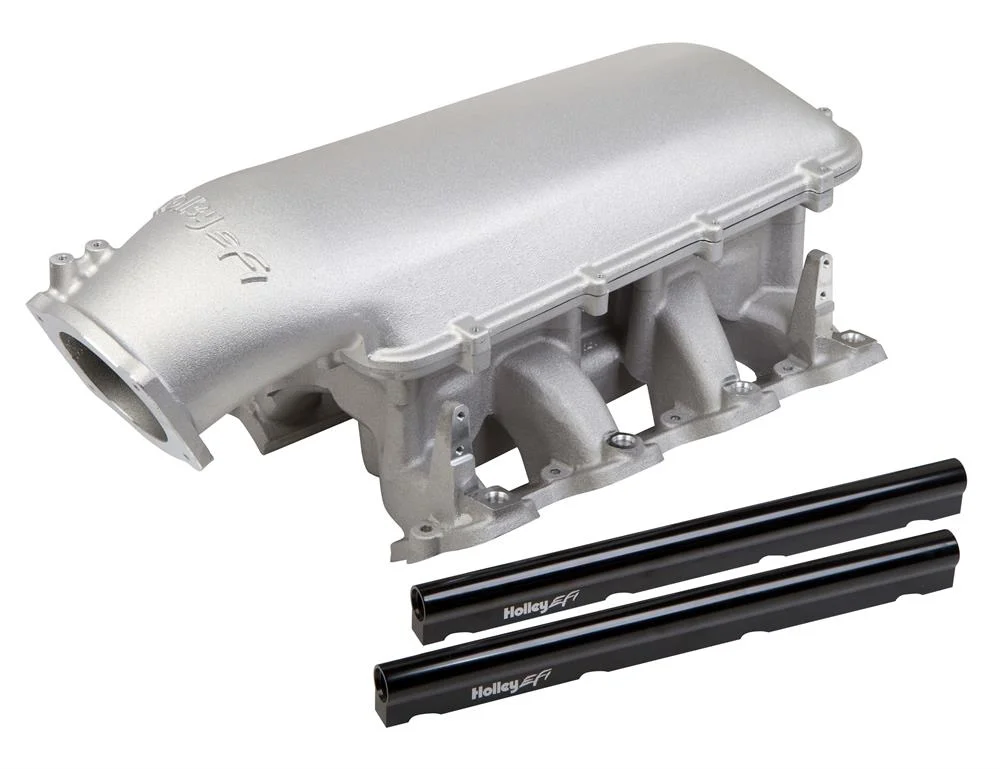

Holley Mid-Rise Intake for GM LS1/LS2/LS6 platform enginesPower band from 1500-6500 rpmProvides great performance to 6500 rpm for street/strip performance applications while providing the look of a racing EFI intake manifoldIntended for use on all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads (recalibration of the ECU may be required when using this intake manifold design with OE ECU).Unique modular design allows the combination of a traditional dual-plane layout with an EFI manifold plenum to produce great mid-range torque without compromising top end powerGreat for supercharged or turbocharged enginesMay require an aftermarket hood for some vehicle applications.Cast aluminum construction105MM EFI plenum topThe Modular Mid-Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid-Rise 2 x 4 intake manifold along with a purpose built plenum base adapter and a Holley 105MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44″, the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance.It’s perfect for turbocharged, or normally aspiratedapplications.This manifold is modular, and the plenum adapter (PN 300-267) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

Basic Operating RPM Range: 2500-7000 RPM

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: N/A

CNC Ported: No

Color: Silver

Construction: Cast

Cylinder Head Port Shape: Cathedral

Deck Height: 9.24 Inch

EGR Port: No

Engine: GM LS1/LS2/LS6

Flange Style: EFI

Front Maximum Height: 10.44″

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Fuel System Type: EFI

Gasket Or Seal Included: Yes

Grade Type: Performance

Intake Port Gasket(s) Included: No

Manifold Type: Mid Rise

Material: Aluminum

Nitrous Bung(s) Included: No

Plenum Finish: Natural

Rear Maximum Height: 9.99 Inch

Recommended Use: Forced Induction

Removable Runners: No

Removable Top/Lid: Yes

Single Or Dual Plane Type: Single Plane

Throttle Body Bore Diameter: 105 MM

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Vacuum Ports: Yes
