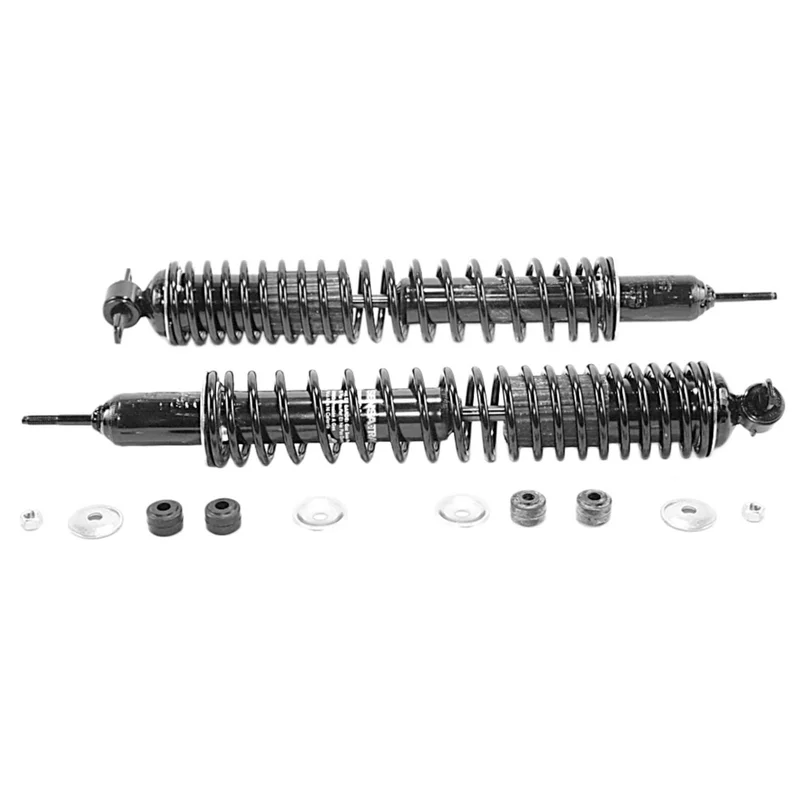

Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to changing road and weight conditions to provide extra control when operating conditions get more demanding.
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Ride Height: No
Compressed Length:308 MM
Damping Type:Oil
Dust Shield Included: Yes
Dust Shield Material: Metal
Extended Length: 20.375″
Grade Type: Premium
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Rebound Bumper: No
Lower Mount Code: S4
Lower Mount Type: Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch
Parts Pack(s): P01137
Shock Absorber Body End Measuring Point: Base of Stem
Shock Absorber Rod End Measuring Point: Center of Cross Pin
Travel Length:209.5 MM
Upper Mount Code: XP7
Upper Mount Type: Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
