Description

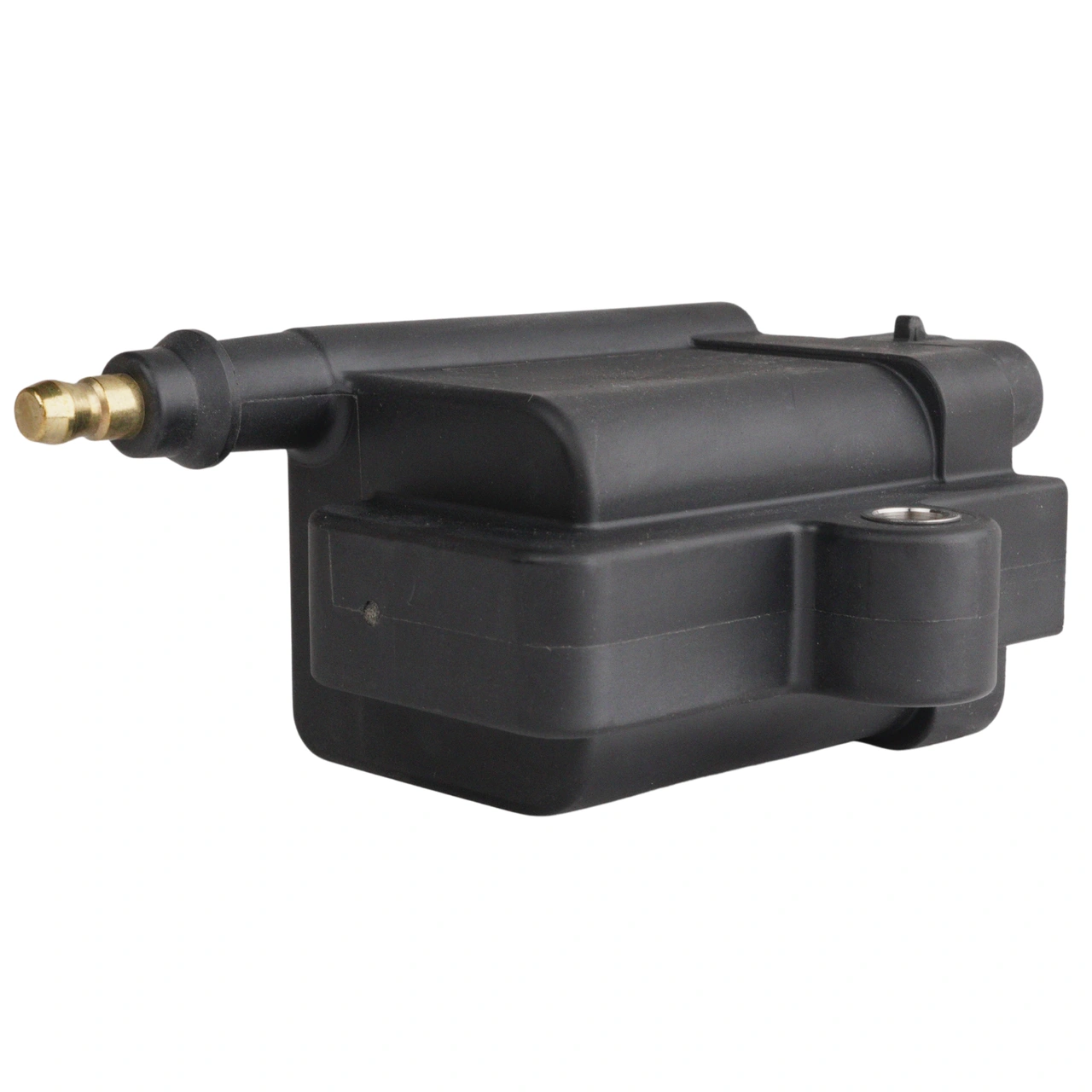

Mototron tändspole.

Ett mycket prisvärt alternativ där inte VAG tändspolen räcker till.

Samma tändspole som AEM’s ”smart coil”.

Kontaktdon ingår ej

Pin A: Signal från ECU.

Pin B: Jord.

Pin C: Jord.

Pin D: Jord.

Pin E: +12V.

(Se bild för inkoppling.)

Tändhatt av typen SAE 6,5mm för tändspole passar denna spolen.

Deliver CDI-like spark energy-No CDI Module needed

Cost less than aftermarket LS1 coils

Can be mounted almost anywhere

TUNER FEATURES

Massive Spark Energy, up to 103 mJ!

Incredibly long spark duration, up to 2.9mS!

Up to 40kV Output Voltage, without using a CDI!

Weather and Shockproof design

Can be mounted directly to the Engine

TECHNICAL SPECIFICATIONS

Output (no load): 40kV minimum

Output (50pF load): 40kV +/- 10%

Output Energy: 103 mJ +/- 7%

Peak Secondary Current: 102 mA +/- 10%

Arc Duration: 2.9mS +/- 10%

Turns Ratio 71:1

Maximum Current: 19 Amps

Maximum Battery Voltage: 17 Volts

Base Dwell: 3.0 mS

Max Continuous Dwell: 9 mS but don’t exceed 40% duty cycle

Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum

Mating Connector: Packard/Delphi 12162825 ”Pull to Seat”

Mating Contacts: Packard/Delphi 12124075 ”Pull to Seat”

High Tension Wire Terminal: HEI ”spark plug top” Style
