Description

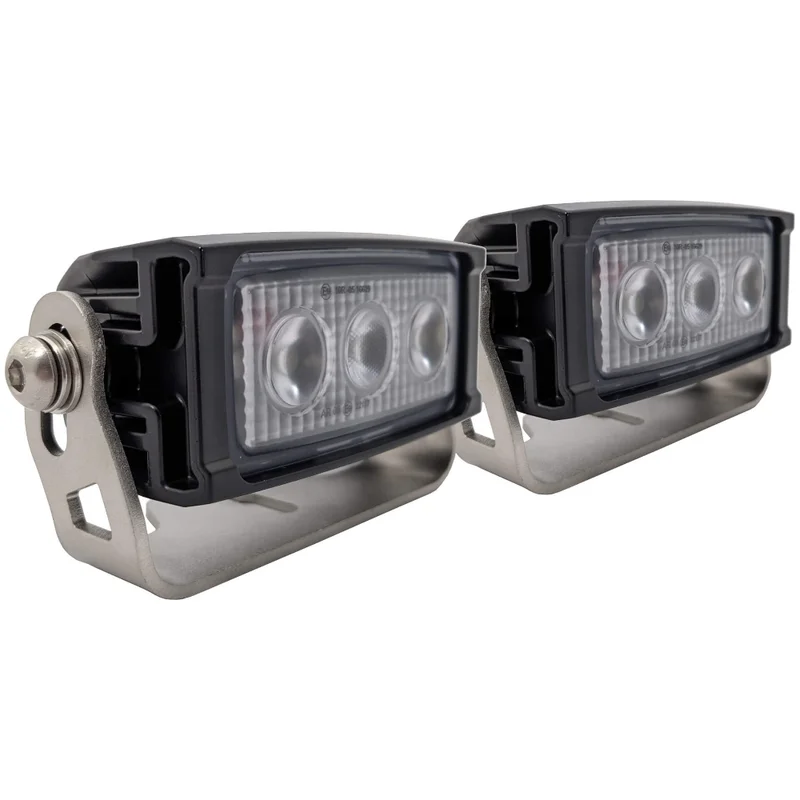

The VL-Series LED Light Duty offers outstanding light output in a functional design which can be easily adjusted with a single bolt bracket. High quality construction and components enable VL-Series LED Light Duty to withstand vibrations up to 21 Grms. Built-in reverse polartity protection helps prevent accidental damage caused by incorrect installation.This kit contains two work/reversing lights (TW0503M) and a full installation wiring harness with fuse and relay.

Approval: ADR approved

Beam angle: Mixed 60°/40°

Current consumption: 1.25 Amp @ 12V

Depth: 51 mm

Easy installation with DT plug

ECE approval: Yes, R23

Effective lumens: 797

EMC Approval: CISPR25 Class 3

Height: 72 mm

Lamp housing: Composite

Lens: Polycarbonate

Mount: Rustfree steel

Number of LED: 3 x 5W

Rating: IP68 / IP69K

Raw lumen: 1140

Vibration Rating: 21 Grms

Voltage: 9-32 volts.

Wattage: 15

Width: 119 mm
