Description

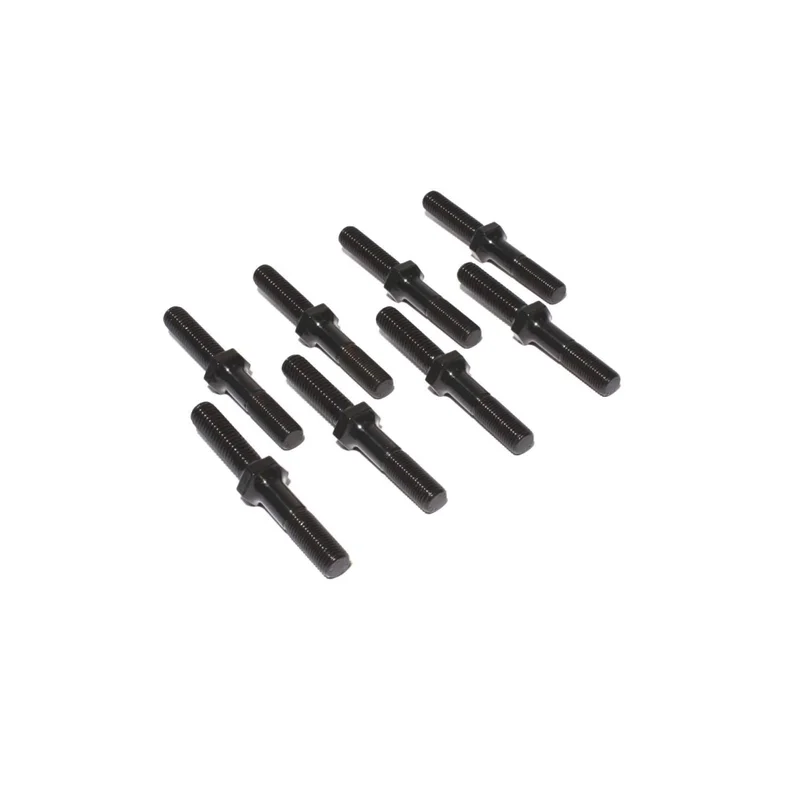

Hi-Tech Rocker Stud Set BBC Exhaust w/ 7/16″ Base Thread and 7/16″ Rocker ThreadCOMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energyââ??¢ and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8″ and 7/16″ sizes. When ultimate strength is required as with high rpm Roller Cam Applicationsthe Hi-Techââ??¢ Race Stud is the answer. This Stud has a thin jam nut for Rocker clearancerolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. Designed for ultimate strength and locking force High Energy and Magnum polylocks are best for moderate lift and spring pressure Applications Hi-Tech Polylocks work well in all high end Race applications. The Stud girdle polylocks are precision ground for minimum runout and tapered for extra strength in the locking area.&#x0D

&#x0D

&#x0DBase Thread

&#x0D

&#x0D

&#x0D Part# Description Diameter Length Stud Diameter Effective Stud Length

&#x0D

&#x0D 4507-8 Hi-Tech Race Exhaust for 396-454 Chevrolet with Aluminum Head 7/16 1.680 7/16 2.000

&#x0D

&#x0D

Base Thread Diameter: 7/16″

Base Thread Length: 1.68″

Effective Stud Length: 2″

Rocker-Side Thread: 7/16 Inch
