Description

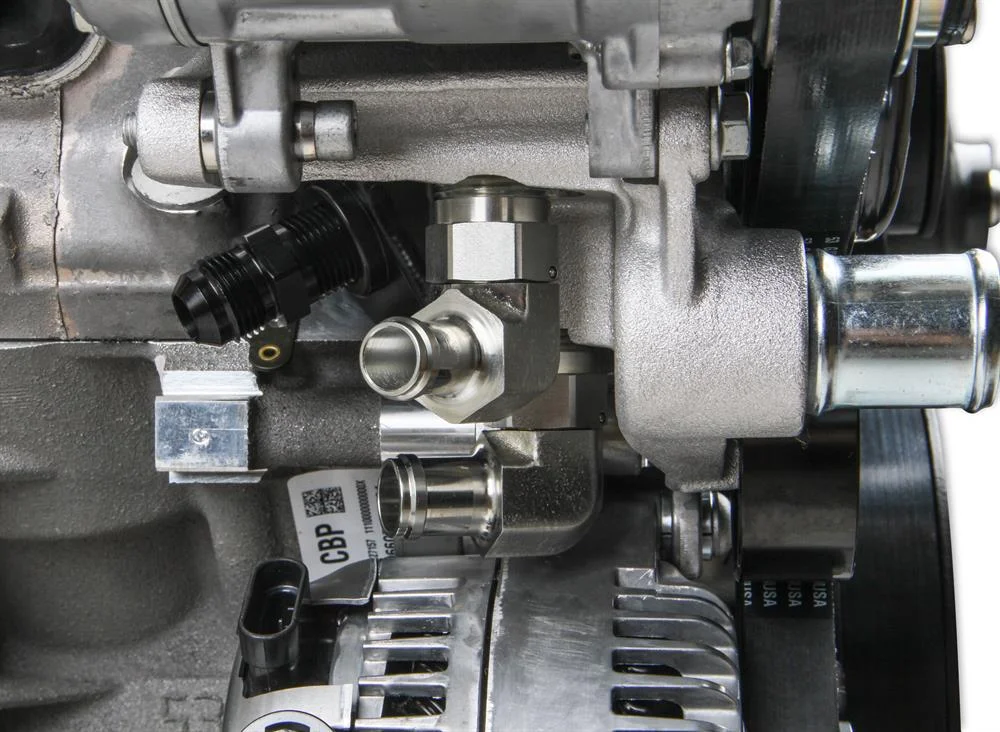

Complete GM Gen V LT5 Accessory Drive System w/ Alt, P/S, A/C, Water Pump, Belts, and hardware. Black FinishAdds power steering without any belt load on the P/S pumpNotably more clearance to swap applications than other optionsOriginal equipment lookLT4 style premium alternatorLT4 style water pump designCompact SD7 A/C compressorA/C line adapters includedType II power steering pumpP/S hard line adapters includedBottom outlet swivel heater hose options for swap application clearanceThrottle body angle correcting adapter for easier intake tube routing on swap applicationsOE pulley ratios for optimal accessory performance, allows for larger SC crank pulleyAvailable LT4/5 dry-sump LT4 wet-sump applicationsLT4/5 specific accessories available for plumbing oil cooler and PCV oil separator OE systemHolley’s complete accessory systems for LT4 and LT5 applications have all accessories pulled up and in tight. Plus, they add the much needed hydraulic power steering solution. There are no shortcuts here. Holley incorporates a splined dual bearing system that eliminates all belt stresses on the P/S pump’s internal bearings, assuring long life. The supercharger drive maintains the original and optimized belt path and tensioner. The accessory layout is as if the original manufacturer had designed it for your swap application. Included with each drive system is a throttle body angle correcting adapter that better positions the TB for swap applications as opposed to the aggressive original application intended angles. Versions of these accessory drives are available for both wet and dry sump applications.Patent – /patents/

A/C Compressor Included: Yes

A/C Compressor Type: SD7

Accessory Drive Style: Mid-Mount

Alternator Amperage: 150

Alternator Included: Yes

Application: GM Gen V LT5

Belt Included: Yes

Choose Your Part: Accessory Drive Kits

Damper Included: No

Damper Style: Factory

Engine: GM Gen V LT5

Finish: Black

Inlet Size: 35.40 mm/1.4″

Material: Cast Aluminum

Oil System Type: Dry Sump

Output: 150 Amps

Power Steering Hardline Included: Yes

Power Steering Pulley Included: Yes

Power Steering Pump Included: Yes

Power Steering Reservoir Included: No

Pulley Style: Serpentine

Tensioner Included: Yes

Thermostat Included: Yes

Water Neck Included: Yes

Water Pump Included: Yes

Water Pump Pulley Included: Yes
