Description

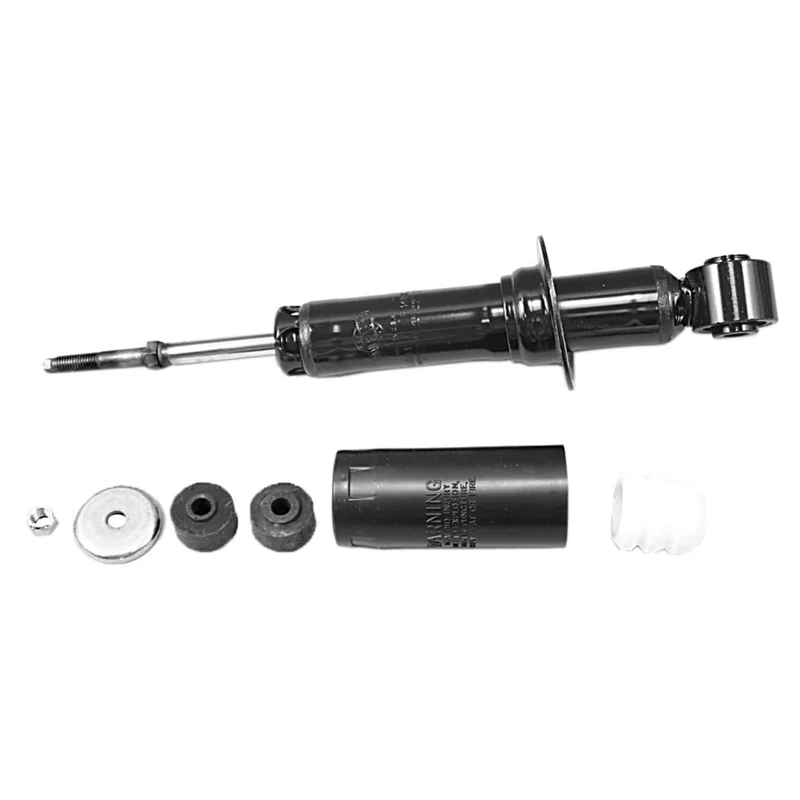

Magnum Severe Service Front Suspension StrutMonroe(R) Magnum(R) Severe Service shock absorbers are engineered for hardworking emergency, municipal, fleet and jobsite vehicles. These gas-charged, heavy-duty Monroe shocks feature enhanced components for superior stability and ride control in the toughest environments.
Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Length:11.929 IN
Coil Spring Included:No
Compressed Length:352.4 MM
Dust Shield Included: Yes
Dust Shield Material: Plastic
Extended Length: 17″
Gas Charged: Yes
Grade Type: Premium
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Rebound Bumper: No
Lower Mount Code: LS53
Lower Mount Type: Loop Bushing and Sleeve Mount – 5/8″-16MM Sleeve ID X 2″ Sleeve OAL
Mounting Hardware Included: Yes
Parts Pack(s): P01611
Shock Absorber Body End Measuring Point: Center of Loop
Shock Absorber Rod End Measuring Point: Base of Stem
Strut Mount(s) Included:No
Travel Length: 3.125 Inch
Upper Mount Code: S5
Upper Mount Type: Stem Mount – 2.5/8″ Stem Length X 1/2″-13 Thread Pitch
