Description

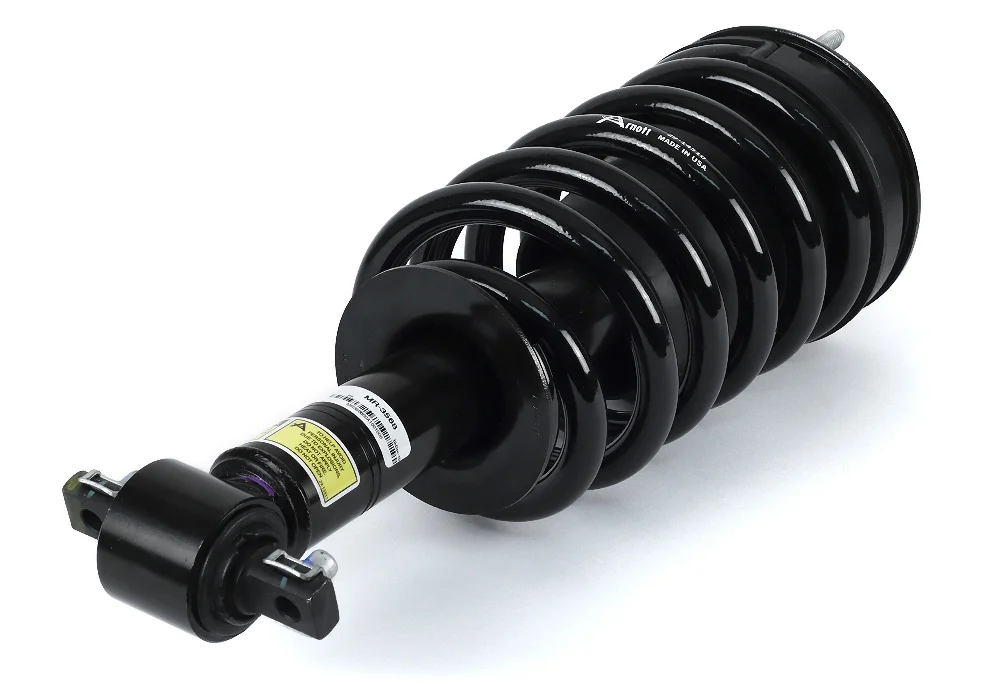

MR-3568 is a new universal fit magnetic coil-over strut assembly for long and short wheelbase 2007-2014 GM SUVs (GMT9XX Platform) equipped with the GM magnetorheological damper system (Z95 RPO). This magnetically controlled loaded strut from Arnott is a direct OE replacement. The monotube damper is filled with magnetorheological fluid which is a synthetic hydrocarbon oil containing iron particles that are easily magnetized. The damper includes an electromagnetic coil which, when turned on, causes the magnetized iron particles to act in a way that changes the effective viscosity (and stiffness) of the suspension. Arnotts new universal magnetic strut, which fits the left or right side, connects to the vehicles ECU with no modifications. This product is pre-assembled for safety with a new steel coil spring, upper strut mount, bump stop, spring seat and isolator.OE replacement GM magnetic coil-over strut assemblyOES design componentsConnects to ECUUniversal strut fits left or right sidePre-assembled with a new steel coil springNew spring seat, isolator and mounting hardwareInstallation Manual Available2-Year WarrantyReplace in pairs

Active Or Passive Suspension:Active

Adjustable Compression:No

Adjustable Damping:Yes

Adjustable Rebound:No

Adjustable Ride Height:No

Adjustable:No

Air Adjustable:No

Air Bladder Material:No

Air Bladder:No

Air Ride Suspension:No

Bearing Plate Included:No

Bladder Heavy Duty Crimping Rings Included:No

Bladder Sleeve(s) Included:No

Bladder(s) Included:No

Body Diameter:115 (mm)

Body End Measuring Point:Center Eye

Boot Color:Black

Boot Included:Yes

Coil Over Springs Included:Yes

Coil Spring Included:Yes

Compressed Length:444.5 (mm)

Dust Shield Included:Yes

Dust Shield Material:Rubber

Extended Length:552.45 (mm)

Gas Charged:No

Grade Type:Standard

Heavy Duty Crimping Rings:No

Housing Material:Steel

Internal Construction Type:Monotube

Internal Damper Type:Magnetic

Lower Mount Type:Cross Pin

Lower Mounting Isolator Included:No

Mounting Hardware Included:Yes

New Or Remanufactured:NEW

Outer Housing Diameter:115 (mm)

Progressive Spring Rate:No

Protective Aluminum Can:No

Shock Absorber Rod End Measuring Point:Shoulder of Stud

Shock Spring Assisted:Yes

Shock/strut Color:Black

Spring Isolators Included:Yes

Spring Rate Type:Linear

Spring Seat Included:Yes

Springs Included:Yes

Travel Length:107.95 (mm)

Upper Mount Type:Stud

Upper Mounting Isolator Included:Yes
