Description

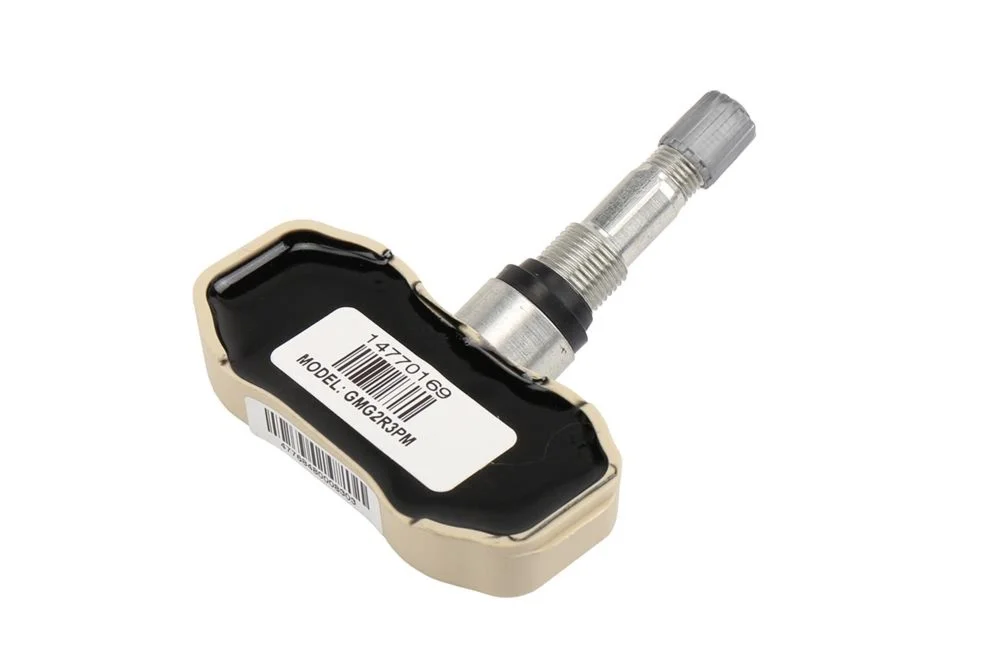

ACDelco GM Original Equipment Tire Pressure Monitoring Sensors (TPMS) are battery powered sensors located in the tire that monitor the vehicle’s tire pressure and warn the driver when pressure falls more than 25% below the manufacturer’s recommendations (normally through a slow pressure loss), and are GM-recommended replacements for your vehicle’s original components. The sensor is connected with the valve stem and, by way of Radio Frequency (RF) technology, sends pressure updates to the vehicle’s on-board computer. Tire pressure is displayed on the vehicle’s Driver Information Center (DIC) or, when low, a warning light may be illuminated to warn the driver. U.S. Federal Regulations require that new cars and light trucks be equipped with TPMS starting in 2008. These original equipment tire pressure monitoring sensors have bn manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors.GM-recommended replacement part for your GM vehicle’s original factory componentDesigned to communicate perfectly with your GM vehicle’s TPMS ModuleBattery is made to last up to 10 years of normal useThis part requires programming and/or special setup procedures. GM Service Information describes the procedures and special tools needed to ensure proper operation in the vehicleOffering the quality, reliability, and durability of GM OEManufactured to GM OE specification for fit, form, and function

Activation Type: Scan Tool

Frequency: 315 N6

Gasket Or Seal Included: Yes

Height (in): 1

Height (in): 1 in

Housing Material: Plastic

Length (in): 3.1

Length (in): 3.1 in

Material: Aluminum

Maximum Pressure Reading: 102 PS

Meets or Exceeds Original Equipment Manufacture Specifications: Yes

Monitor Type: direct

Mounting Hardware Included: No

Mounting Method: Clamp In

Power Source: Battery

Pre-Programmed: No

Programmable: Yes

Programming Required: Yes

Real Time Pressure Signal Transmission: Yes

Universal Or Specific Fit: Specific

Valve Cap Included: Yes

Valve Color: Silver

Valve Included: Yes

Valve Length: 1.6 Inch

Valve Length: 40.7 MM

Valve Material: Aluminum

Width (in): 1

Width (in): 1 in
