Description

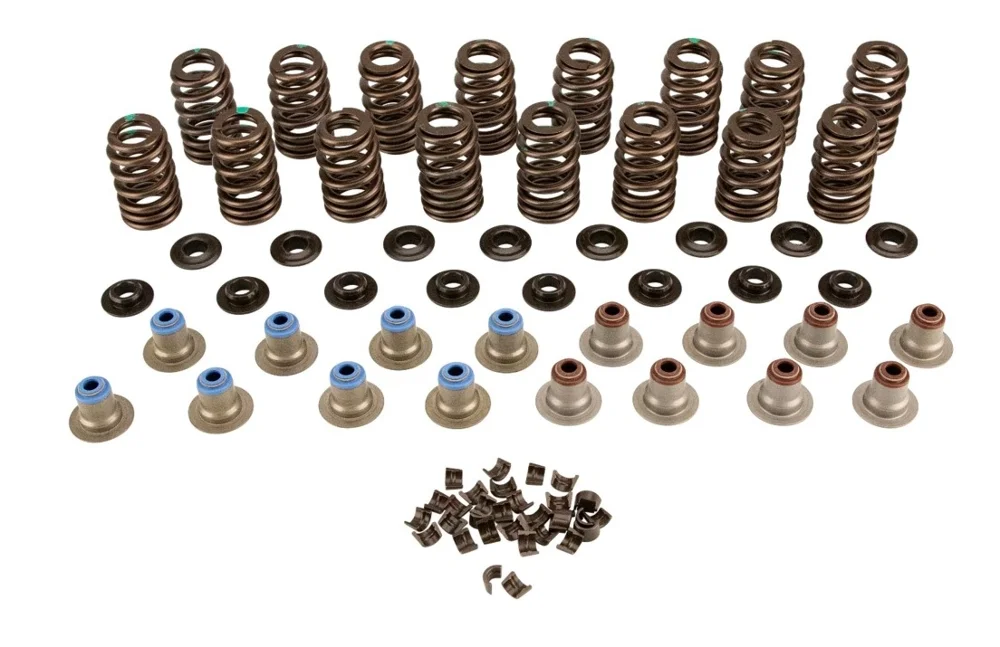

LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers0.580″ Max LiftThe COMP Cams 0.575″ ” Lift Beehive LS6+ Valve Spring Kit Features:

 4% higher load and .030″ higher lift capacity than Blue GM LS6 Springs Includes springsChromemoly retainersvalve locksSealsand spring seats
Available with Tool Steel Retainers under 26906TS-KIT
0.580″ Max Lift
Coil Bind Height: 1.181″
Compatible Shims: 4753
Engine Fitment: GM LS Cathedral and Rectangle Port Applications
Includes Locks: Yes
Includes Retainers: Yes
Includes Spring Seats: Yes
Includes Valve Seals: Yes
Locator Inner Diameter: 0.510″
Locator Outer Diameter: 1.300″
Locator Thickness: 0.0600″
Max Lift: 0.580″
Retainer Material: Chromemoly Steel
Seat Height: 1.800 Inch
Seat Pressure: 92 LB
Spring Bottom Inside Diameter: 0.860 Inch
Spring Bottom Outside Diameter: 1.282 Inch
Spring Top Inside Diameter: 0.655 Inch
Spring Top Outside Diameter: 1.077 Inch
Valve Seal Outer Diameter: 0.600 Inch
Valve Seal Type: Steel Jacketed Viton
Valve Spring Type: Beehive
